VHF Circular Polarization Antenna

VHF Circular Polarization Antenna

The VHF Circular Polarization Antenna (Lambda) is for Band I channels 2-6 and Band III channels 7-13. The development focused on a top-mounted circularly polarized antenna. It has comparable loadings to the familiar horizontally polarized Super-turnstile. Besides, the antenna supports a power rating of 100 kW ERP per plane.  Also, there is ample reserve capacity.

The antenna’s carefully optimized design guaranteed the performance. Moreover, careful selection of materials resulted in a heavy-duty galvanized steel pole and radiating elements.  Grounded Copper, Brass, and Gunmetal distribution feeder components, plus stainless steel hardware, guarantee its longevity. Finally, the Radome protection of the feed points eliminates the need for expensive electrical de-icing.

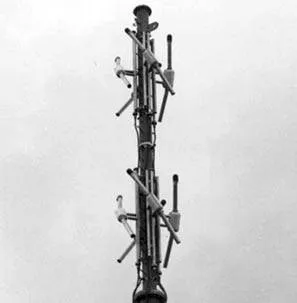

The antenna consists of several bays with four slant dipoles per bay. Either single or dual 3-1/8 EIA input flanges are available. Also, this is as indicated in the downloadable PDF available below. Additionally, input fine matching minimizes installation and commissioning time. They also provide an optimum antenna match to the transmission line.

Features of the VHF Circular Polarization Antenna

  • Circularly polarized.
  • Channels 2-6 (Band I).
  • Channels 7-13 (Band III).
  • Top Mounted.
  • Omni Directional.
  • Super-turnstile Replacement.
  • Shipment will include grounded copper feed lines.
  • Protective Radomes.
  • DC grounded for lightning protection.
  • Hot dipped galvanized pole.
