8000W FM Bandpass Filter

8000W FM Bandpass Filter

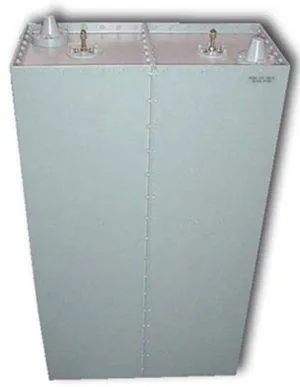

The JAMPRO 8000W FM Bandpass Filter provides an FM Iris Coupled Combline bandpass filter. These designs also provide superior performance for medium-power transmitter systems in a modular configuration. Moreover, they configure, assemble, test, and ship 2, 3, 4, or 5 sections.

In addition, the filter provides almost any rejection bandwidth value. Selecting several sections and coupling iris dimensions is necessary to achieve almost any rejection bandwidth value. It minimizes pass-band insertion loss using 11.5” high-Q aluminum cavities. The invar tuning rods on copper center conductors assure temperature stability.

8000W FM Bandpass Filter Specification:

  • Type: 2,3,4 or 5 sections.
  • Frequency: 87.5 – 108 MHz.
  • Power: 5 KW and 8 KW with heat sinks.
  • VSWR: 1.08:1 Max  ± 150 kHz.
  • Insertion Loss: 0.5 dB Max +/- 200 KHz.

Rejection FM Bandpass Filter (RCBC-X1X-FM) Specifications:

  • 2-Section 30 dB ± 4.0 MHz.
  • 3-Section 30 dB ± 1.6 MHz.
  • 4-Section 30 dB ± 1.0 MHz.
  • 5-Section 30 dB ± 0.7 MHz.

Also, the 1-5/8” unflanged connectors will be standard. Flanged connectors are also available upon request. The design also delivers power levels of up to 5 KW. With heat-sinks provide power level support to 8kW.

Finally, please call the Jampro team for more information and pricing or leave a message via the Contact Us page. We will get back to you as soon as possible.
